Description
Gold Wing Clutch Reservoir 25mm Ball Mount Base
Gold Wing Clutch Reservoir 25mm Ball Mount Base from PANICAL is a left-side accessory mounting system designed for 2018–2026 Honda Gold Wing GL1800 F6B 6-Speed and Gold Wing Tour manual-transmission models. The CNC-machined reservoir extension base installs at the clutch fluid reservoir area and adds a 25 mm ball connection for compatible motorcycle accessory arms and holders.
The main base is made from T6061 aluminum profile with a black anodized finish. The 25 mm ball combines an aluminum alloy core with a TPU overmold and uses turn-mill machining with precision injection molding. The complete kit also includes 304 stainless steel mounting hardware, an aluminum alloy hand-tightened nut, a 1/4-inch accessory mounting screw, and installation accessories for the specified mounting setup.

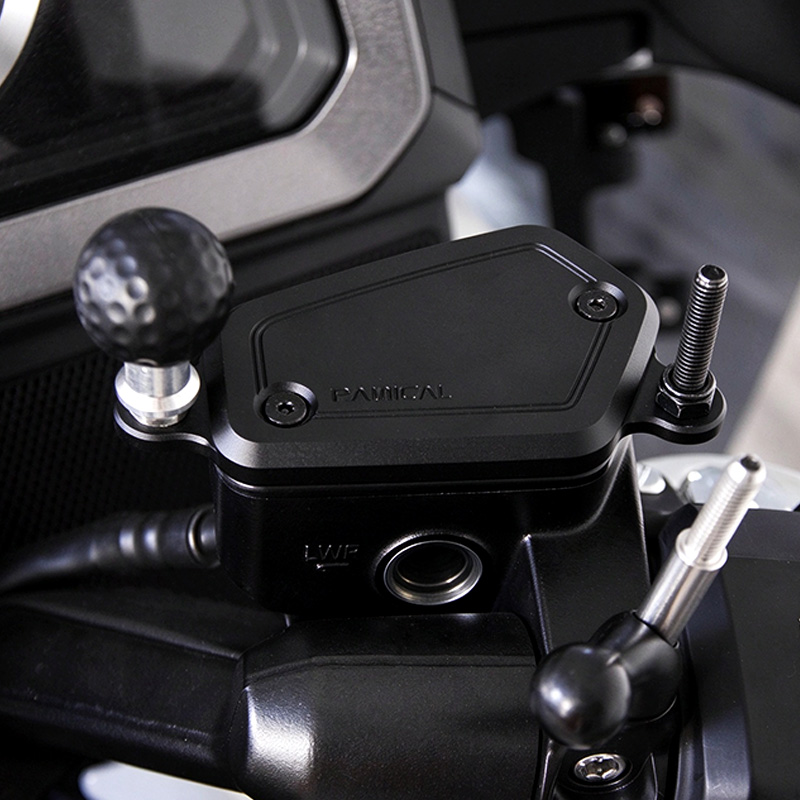

The Gold Wing Clutch Reservoir 25mm Ball Mount Base installs at the left-side clutch fluid reservoir area and provides an additional accessory mounting position without replacing the clutch fluid reservoir itself.
The included 25 mm ball provides a connection point for compatible ball-socket arms, holders, and motorcycle accessory mounting systems when the socket dimensions match.

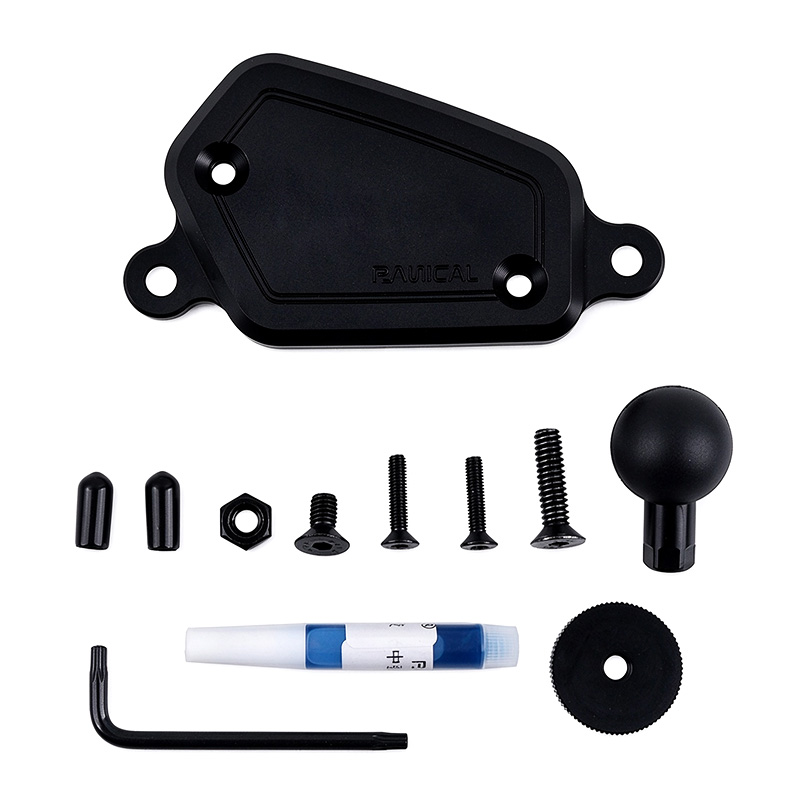

The complete kit combines the clutch reservoir extension base, 25 mm ball mount, and additional mounting hardware to support compatible accessory configurations using the supplied interfaces.
The mounting base is configured specifically for the clutch fluid reservoir position on compatible manual-transmission Honda Gold Wing models.

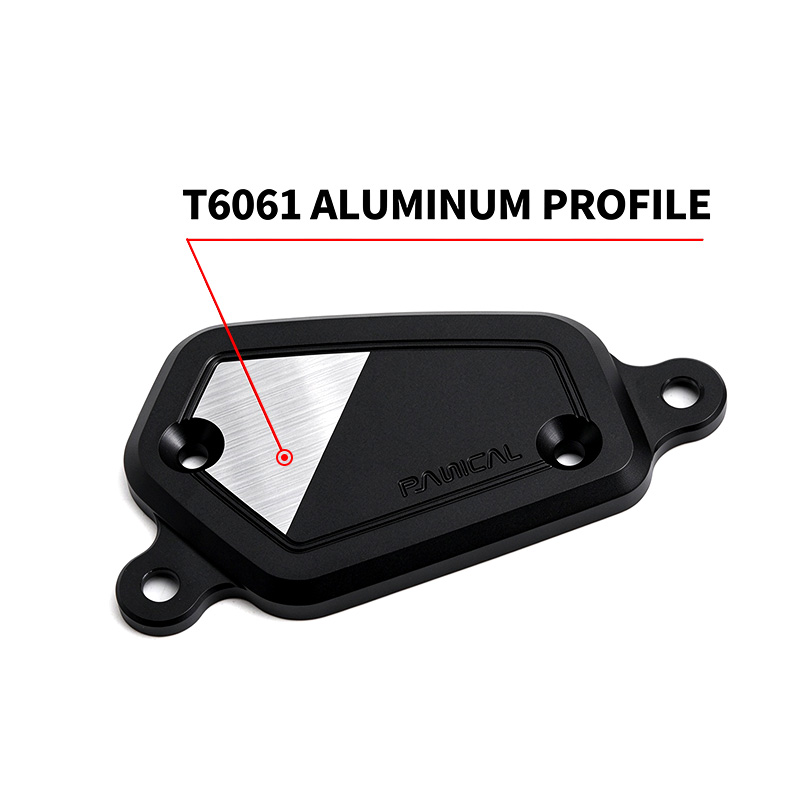

The main clutch reservoir extension base is manufactured from T6061 aluminum profile using CNC machining and finished with black anodizing.
The ball mount uses an aluminum alloy internal structure with a TPU overmolded exterior, providing a 25 mm ball interface for compatible socket-type accessory systems.

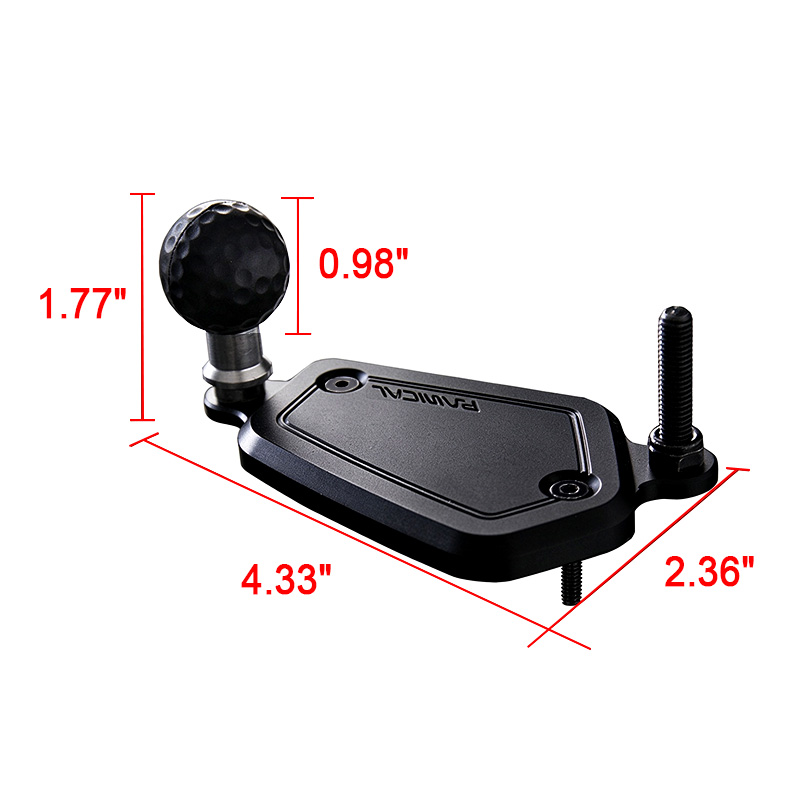

The main mounting base measures approximately 4.33 inches long by 2.36 inches high according to the supplied dimensional image.
The accessory ball has a diameter of approximately 0.98 inch, corresponding to the specified 25 mm mounting-ball size.
The supplied dimensional reference shows an assembled height of approximately 1.77 inches from the mounting level to the top of the ball.
The specified installation screws use 304 stainless steel, while the hand-tightened nut uses aluminum alloy construction.
The Gold Wing Clutch Reservoir 25mm Ball Mount Base is designed only for the listed 2018–2026 manual-transmission Gold Wing configurations equipped with the conventional left-side clutch fluid reservoir. It is not compatible with Gold Wing F6B DCT, Gold Wing Tour DCT, or Gold Wing Tour Airbag DCT models.
This product is a clutch reservoir accessory mounting system and does not include or replace the motorcycle’s clutch fluid reservoir. Confirm that the motorcycle is a compatible manual-transmission model and verify the left-side mounting position before installation.
Confirm that the intended accessory arm or holder uses a compatible 25 mm ball-socket interface or matches the supplied accessory mounting hardware. A 25 mm ball diameter alone does not guarantee compatibility with every third-party mounting system. After installation, confirm that all attached accessories remain clear of the clutch lever, switches, steering movement, cables, hoses, and surrounding controls.
